Point Drains

KBRS ShowerSlope™ and Tile-Basin® products fit an industry standard 3-piece tile shower drain (clamping-ring type); however, a KBRS ShowerSlope™ or Tile-Basin® can be manufactured to meet your custom residential or commercial drain requirements as well. A KBRS shower system is the solution to all your residential and commercial shower application needs. KBRS also offers side outlet drain options that make replacing an old tub with a shower base especially easy.

Available Point Drain Connections

Residential:

  • Oatey (standard)
  • Ebbe
  • Kohler
  • Sioux Chief

Commercial:

  • Blucher
  • Josam
  • Wade
  • J.R. Smith
  • Zurn

Custom drains available upon request

Point Drain Installation

Oatey Shower Drains for Tile Shower Bases are designed for use with tile or marble showers where a shower pan liner is used. The low profile design allows for installation in tight specs.

CORRECT:
Ensure that the drain flange is 3/8" above the sub-floor:

INCORRECT:
DO NOT recess the drain into the sub-floor:

Standard Drain Options
Strainer Options
Documents
Warranty
linear drain

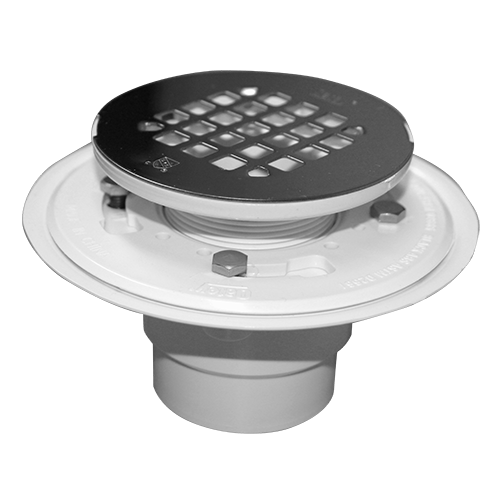

Tile Shower Drain With Stainless Steel Round Strainer
Item #: 42202
PVC Drain with "Snap-Tite" Stainless Steel Round Strainer
Adjustable Height (Adjust to Tile/Other) Reversible Clamping Ring

linear drain

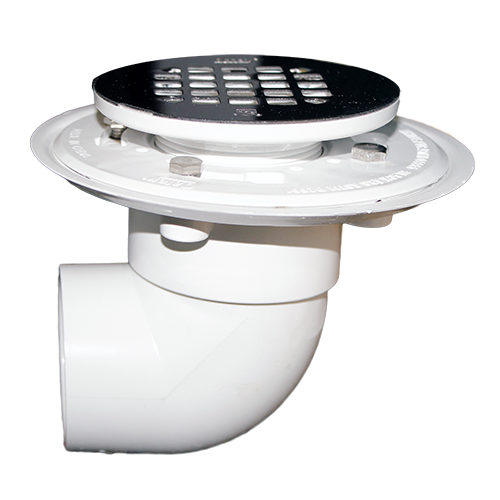

Side Outlet Drain With Stainless Steel Round Strainer
Item #: 42202-SO
PVC Drain with "Snap-Tite" Stainless Steel Round Strainer
Adjustable Height (Adjust to Tile/Other) Reversible Clamping Ring

linear drain

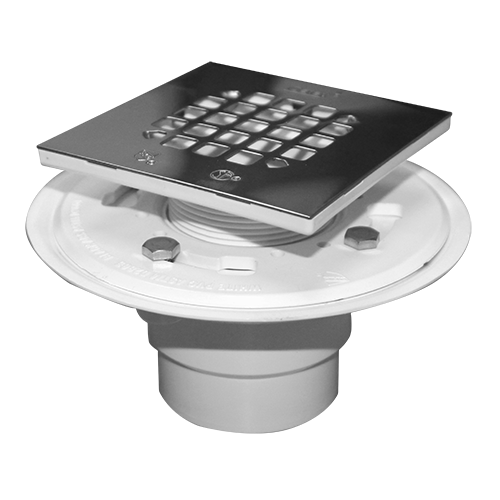

Tile Shower Drain With Stainless Steel Square Strainer
Item #: 42237
PVC Drain with "Snap-Tite" Stainless Steel Square Strainer
Adjustable Height (Adjust to Tile/Other) Reversible Clamping Ring

linear drain

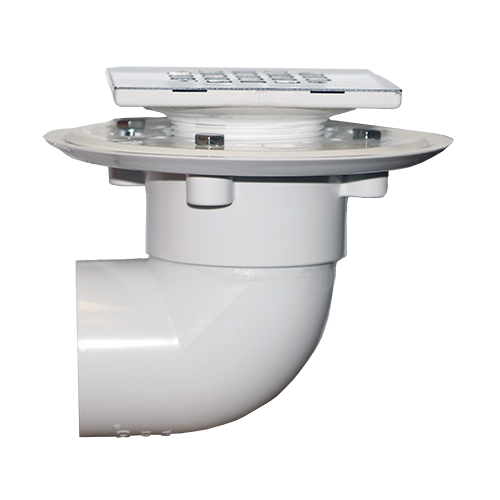

Side Outlet Drain With Stainless Steel Square Strainer
Item #: 42237-SO
PVC Drain with "Snap-Tite" Stainless Steel Square Strainer
Adjustable Height (Adjust to Tile/Other) Reversible Clamping Ring

linear drain

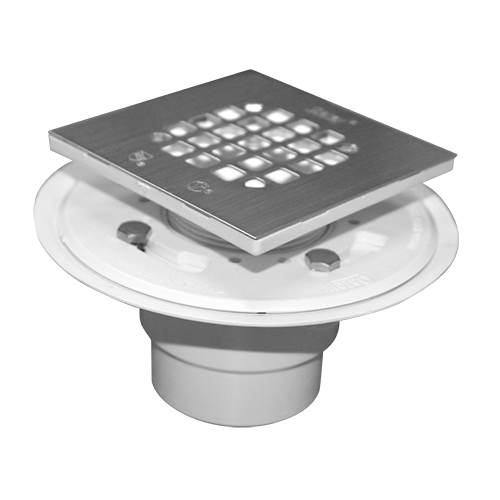

Tile Shower Drain With Brushed Nickel Square Strainer
Item #: 42251
PVC Drain with "Snap-Tite" Brushed Nickel Square Strainer
Adjustable Height (Adjust to Tile/Other) Reversible Clamping Ring

linear drain

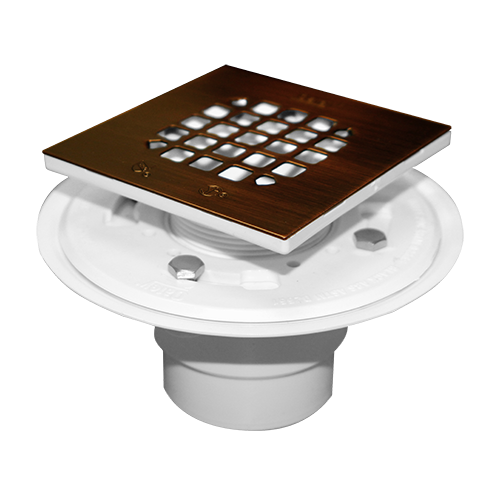

Tile Shower Drain With Rubbed Bronze Square Strainer
Item #: 42398
PVC Drain with "Snap-Tite" Rubbed Bronze Square Strainer
Adjustable Height (Adjust to Tile/Other) Reversible Clamping Ring

linear drain

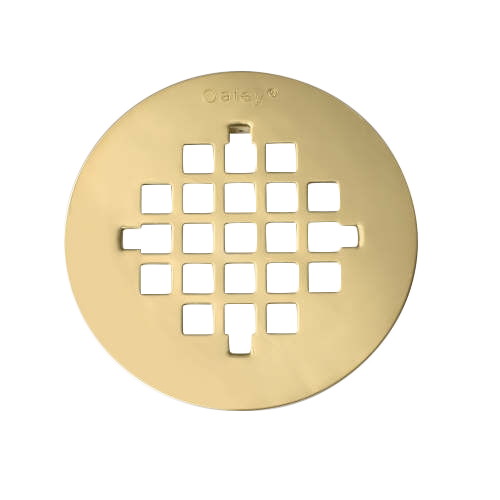

Polished Brass "Snap-Tite" Round Strainer
Item #: 42004

linear drain

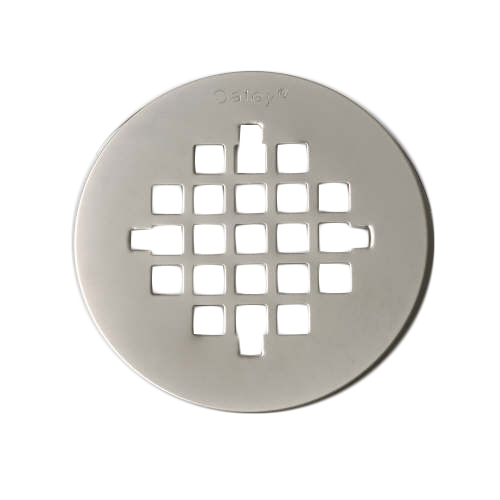

Satin Nickel "Snap-Tite" Round Strainer
Item #: 42014

linear drain

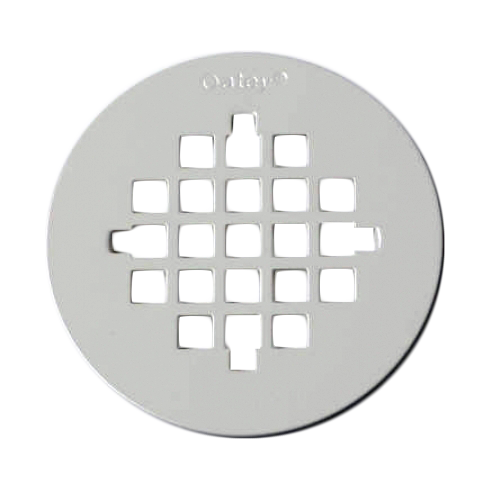

Biscuit "Snap-Tite" Round Strainer
Item #: 42016

linear drain
Rubbed Bronze "Snap-Tite" Round Strainer
Item #: 42017

linear drain

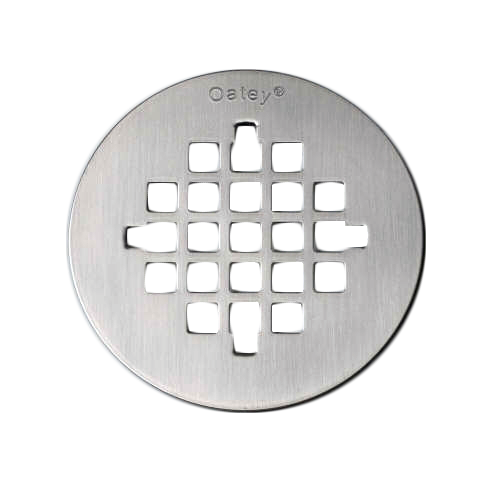

Brushed Nickel "Snap-Tite" Round Strainer
Item #: 42018

linear drain

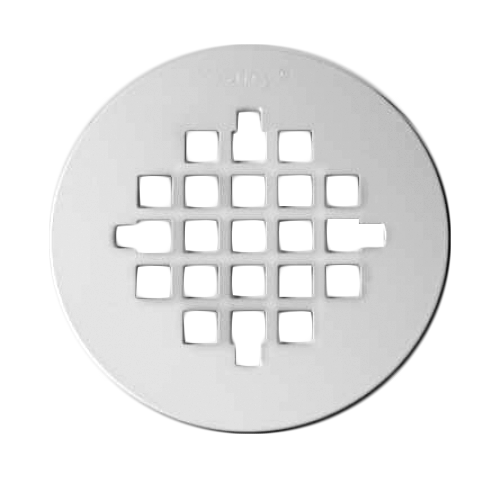

White "Snap-Tite" Round Strainer
Item #: 42019

linear drain

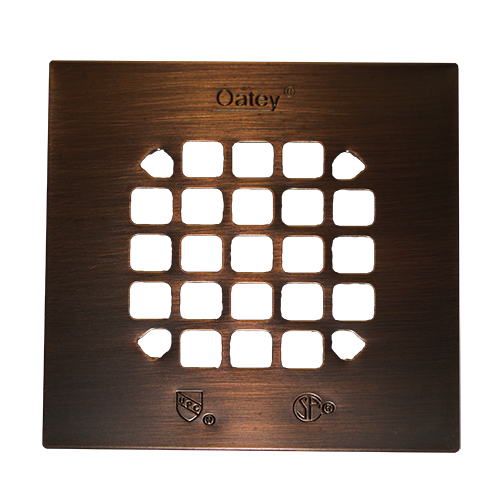

Rubbed Bronze "Snap-Tite" Square Strainer
Item #: 46267

linear drain

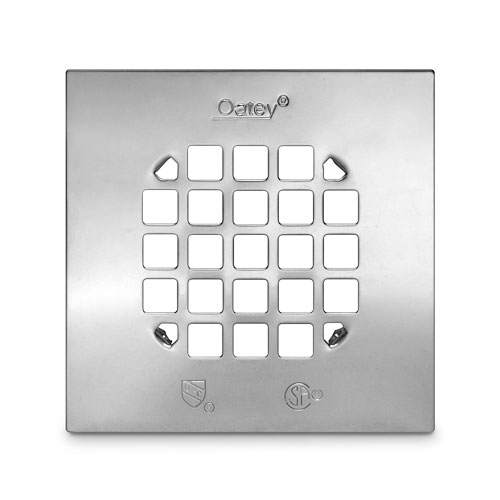

Brushed Nickel "Snap-Tite" Square Strainer
Item #: 46268
